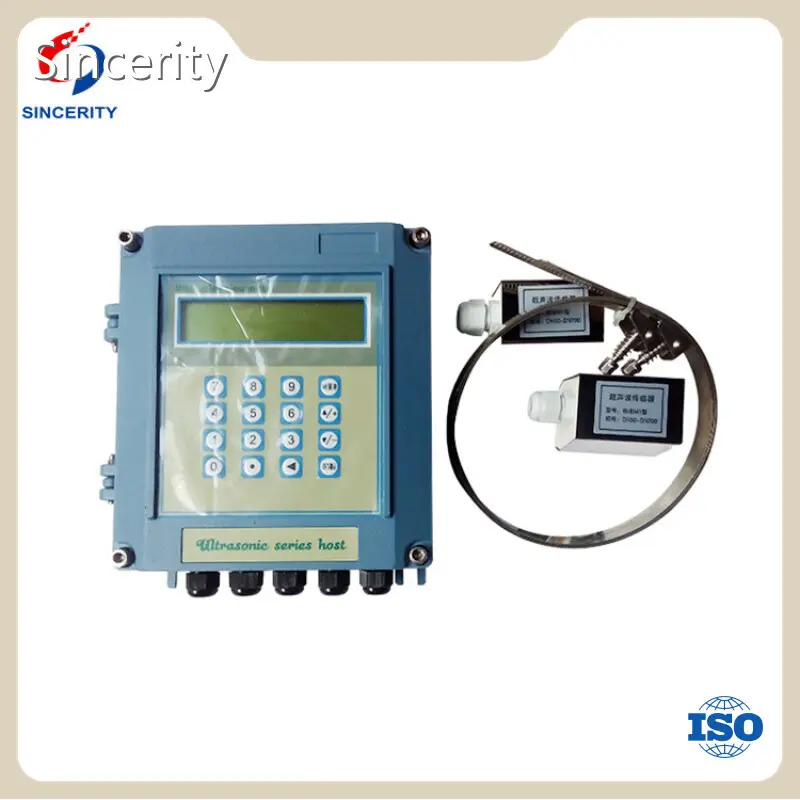

Portable Ultrasonic Water Flow Meter - - Sincerity Group 1
Portable Ultrasonic Water Flow Meter - - Sincerity Group 2
Portable Ultrasonic Water Flow Meter - - Sincerity Group 3
Portable Ultrasonic Water Flow Meter - - Sincerity Group 4
Portable Ultrasonic Water Flow Meter - - Sincerity Group 1
Portable Ultrasonic Water Flow Meter - - Sincerity Group 2
Portable Ultrasonic Water Flow Meter - - Sincerity Group 3
Portable Ultrasonic Water Flow Meter - - Sincerity Group 4

Portable Ultrasonic Water Flow Meter - - Sincerity Group

Inquiry
Send your inquiry

Company Advantages

· Our rich production experience makes sure Sincerity Group portable ultrasonic water flow meter is perfect in craftsmanship.

· The excellent design of portable ultrasonic water flow meter will bring you great convenience.

· Beijing Sincerity Automatic Equipment Co., Ltd has customers from all over the world.

An ultrasonic flow meter is a device used to measure the flow rate of liquids or gases in a pipeline. It works by sending ultrasonic waves through the fluid and measuring the time it takes for the waves to travel between two transducers located in the pipe. By comparing the time it takes for the waves to travel upstream and downstream, the flow rate can be calculated. Ultrasonic flow meters are non-invasive, meaning they do not come into contact with the fluid being measured, making them suitable for use with hazardous or corrosive liquids and gases.

Ultrasonic flow meters have several characteristics, including:

Non-intrusive: Ultrasonic flow meters are non-intrusive, meaning they do not require the insertion of a probe into the flow stream. This makes them ideal for use in applications where there is a risk of contamination or where maintenance is difficult.

High accuracy: Ultrasonic flow meters have a high accuracy of measurement, with some models capable of measuring flow rates to within 0.5% of the actual flow rate.

Wide range: Ultrasonic flow meters have a wide flow range, making them suitable for use in a variety of applications, from low flow rates to high flow rates.

Versatile: Ultrasonic flow meters can be used to measure the flow of a variety of liquids, including water, oils, chemicals, and gases.

No moving parts: Ultrasonic flow meters have no moving parts, which means they require minimal maintenance and have a long lifespan.

Non-contact: Ultrasonic flow meters operate on a non-contact basis, which means they do not come into contact with the fluid being measured. This makes them suitable for use in applications where the fluid may be hazardous or corrosive.

Ultrasonic flow meters enable users to perform flow measurement inspections at many points in the flow process without the need for permanent installation. This universal driving time timer has a dual-function button interface, an ergonomic handheld design, and a beautiful backlit color digital display that greatly simplifies setup and data collection. Compared with other traditional flowmeters or ultrasonic flow meter price, it has the characteristics of high accuracy, high reliability, high performance, and low cost. The flowmeter also has other advantages:

TVT technology design. Fewer hardware components, low-voltage broadband pulse transmission, and low power consumption.

Clear, user-friendly menu selections make the flowmeter easy to use.

Daily, monthly and yearly total traffic. The parallel operation of positive, negative, and net flow is displayed cumulatively by a scale factor (span) and a 7-digit number.

Please contact Sincerity Group, one of the most professional ultrasonic flow meter manufacturers in China with over 30 years of experiences.

Product Specification

Items

Specifications

Main unit

Accuracy

Better than ±1%

Repeatability

Better than 0.2%

Ultrasonic flow meter principle

Transit-time measuring principle

Measurement Period

500ms

Display

LCD with backlight,display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.

Output



Analogue output: 4-20mA or 0-20mA current output. Impedance 0~1kW. Accuracy 0.1%.

OCT output: Frequency signal (1~9999HZ)

Relay output: over 20 source signal (no signal, reverse flow etc.)

RS485 serial port

Input

Three analogue input



Three-wire PT100 resistor input (optional)

Other functions

Automatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days

Pipe

material

Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed

Size

15-6000mm

Straight pipe section

In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter)

Liquid

Types

Water, sea water, industrial sewage,acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid

Temperature

Standard: -30℃ - 90℃ ,High-temperature:-30℃ - 160℃

Turbidity

Less than 10000ppm, with a little bubble

Flow Direction

Bi-directional measuring, net flow/heat measuring

Environment

Temperature

Main Unit: -30℃ - 80℃

Transducer: -40℃ -110℃, Temperature transducer: select on enquiry

Humidity

Main Unit: 85% RH

Transducer: water-immersible, water depth less than 3m

Cable

Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended);      Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m

Power Supply

DC24V

Power Consumption

Less than 1.5W

Protocols

MODBUS, M-BUS, Fuji extended protocol and other factory protocol

Application Scenario

Ultrasonic flow meter applications:These ultrasonic flow meter uses in wastewater and dirty liquid applications.These ultrasonic flowmeters are used to analyze volumetric flow by measuring the velocity of a liquid through ultrasound.These ultrasonic flow meter s are used where chemical compatibility, less maintenance and low pressure drop are required.Beijing Sincerity, 32 years of experience, excellence in Coriolis production.

Portable Ultrasonic Water Flow Meter - - Sincerity Group 5
Drain
Portable Ultrasonic Water Flow Meter - - Sincerity Group 6
Heating
Portable Ultrasonic Water Flow Meter - - Sincerity Group 7
Energy Saving
Portable Ultrasonic Water Flow Meter - - Sincerity Group 8
Metallurgy
Portable Ultrasonic Water Flow Meter - - Sincerity Group 9
Petrochemical
Portable Ultrasonic Water Flow Meter - - Sincerity Group 10
Generate Electricity


Company Features

· Known as a professional portable ultrasonic water flow meter manufacturer, Beijing Sincerity Automatic Equipment Co., Ltd has a wide market share.

· We have a specific quality inspection team. The quality control professionals have deep and abundant knowledge of the requirements and specifications of particular products, hence, they can ensure the products, including portable ultrasonic water flow meter, meet the standards and customers' needs.

· Beijing Sincerity Automatic Equipment Co., Ltd aims to bring the best portable ultrasonic water flow meter with professional service. Call!


Enterprise Advantages

Our company focuses on morality and tries our best to fulfill people's potential. Therefore, we recruit talents from all over the country and bring together a group of elite talents. And they have rich experience in R&D, production, sales and service.

Sincerity has established a sound service system to provide quality services for customers attentively.

Guided by the scientific outlook on development, our company will increase investment in science and technology, take the interests of all parties into account, and promote the harmonious development of society.

Sincerity was founded in In the past years, we have constantly developed new products to meet market demand by taking the market as the guide, by taking products as the core and taking technology as the method. We are committed to providing high-quality products and comprehensive services.

Sincerity's products have the advantages of multiple functions, high technique, and large added value. They are sold well in domestic and foreign markets.
