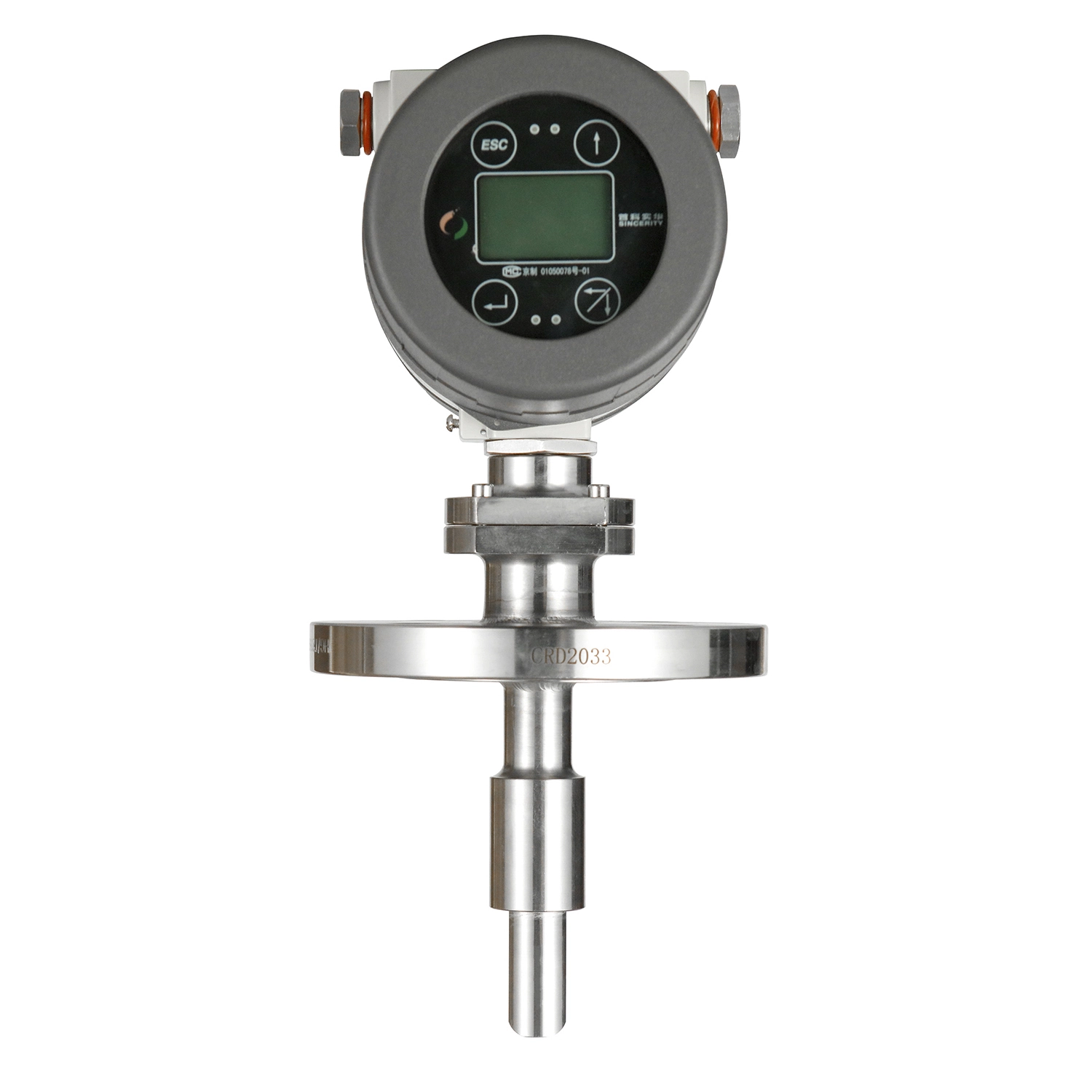

Turking Fork density meter

●  Measure density ,concentration ,gravity, temperature of liquid

●  The accuracy will not be affected by temperature, pressure,density, viscosity, etc.

●  Accuracy: ±0.002g/cc; ±0.001g/cc optional

●  Applications:pipeline interface detection ,mineral slurry solids monitoring,and corrosive acid concentration control;Where fast-response density and concentration monitoring is required.

● Increase installation flexibility with continuous, real-time measurement in pipelines, by pass loops and tanks

●  Choose from a wide range of corrosion-resistant materials for measuring density and concentration of critical chemicals

● Support protocols for connection to DCS, PLC and flow computers

●  Expand usage with a hazardous area-approved, head-mounted transmitter that supports local configuration and display


    oops...!

    no product data.

    Go to homepage

    Fork density meter can measure the density, concentration, gravity, temperature, and accuracy of liquids without being affected by temperature, pressure, density, and viscosity. Applications: Pipeline interface inspection, slurry solids monitoring and corrosive acid concentration control; density and concentration monitoring that require rapid response. Continuously measure pipelines in real-time through pipelines and storage tanks to increase installation flexibility and choose from a variety of corrosion-resistant materials to measure the density and concentration of key chemicals. Supports protocols connected to DCS, PLC and flow computers. Pass Hazardous Area Approved Head-Mounted Transmitters extend the range of use, the transmitter supports local configuration and display.

    Video Display

    Turking Fork density meter 5
    PTFE coated material fork density meter
    Turking Fork density meter 6
    SS 316L material fork density meters
    Turking Fork density meter 7
    Gold plated material fork density meter
    Turking Fork density meter 8
    PTFE coated material fork density meter
    Turking Fork density meter 9
    Fork density meter details

    Product Details

    Beijing Sincerity, 32 years of experience, excellence in Coriolis production.

    Turking Fork density meter 10
    Touch screen transmitter
    We have our own patented touch screen transmitters with DSP core processor with faster data processing speed.
    Turking Fork density meter 11
    Light sensing transmitter
    Traditional light sensing transmitters. This is the technology for us for the last generation. They have a disadvantage that they will be dis-functional under the strong light in the outdoors.
    Turking Fork density meter 12

    OEM Nameplate

    We support OEM lables. We can customize everything on lables for you, even for the inner software.

    Turking Fork density meter 13

    Waterproof hole

    Waterproof & Explosion- proof threading hole.
    With explosion proof rate of ExdibIICT6Gb.

    Turking Fork density meter 14

    Insertion type/ Pipeline type

    The flow velocity should be below 1.5m/s. If the flow velocity is too fast, or the pipe diameter is too small, it is recommended to expand the pipeline to at least DN 150.

    Turking Fork density meter 15

    Length

    The standard length of the turning fork is 128mm. We can extend the length of the turning fork based on the special requirements.

    Turking Fork density meter 16

    OUTPUT:

    4-20mA, 0-1KHz, Standard RS 485 communication protocol, HART

    Turking Fork density meter 17

    Material:

    We can customize the materials for you as your requirements, including SS316L, HC Hastelloy, SS 2205 steel, Titanium, etc.

    Turking Fork density meter 18

    CONNECTIONS

    Connections can be specially customized based on your own requirements. GB Flange/ ANSI/ DIN/ JIS Flanges / threaded connections/ Tri-clamp connections, etc.

    Product Display

    Turking Fork density meter 19

    Downloads

    Product Details

    Turking Fork density meter 22
    Specifications
    (1)Density accuracy: standard ±2,0 kg/m3(±0,002 g/cm3), ±1,0 kg/m3(±0,001 g/cm3) optional
    (2)Operating density range: 500-2500 kg/m3 (0.5-2.5 g/cm3)
    (3)Operating temperature range -short stem: –50 °C a +200 °C (–58 °F a +392 °F)
    (4)Operating temperature range- long stem: –40 °C a +150 °C (–40 °F a +302 °F)
    Turking Fork density meter 23
    Materials
    Wetted parts- short-stem meter ( standard length of 128mm) :
    - 316L stainless steel
    - Alloy C276
    - 316L stainless steel with PFA coated
    - Alloy C276 with PFA coated
    Turking Fork density meter 24
    Wetted parts- long-stem meter
    - Alloy C276 for meters up to 2 m (6.5 ft) long
    - 316L stainless steel for meters up to 2 m (6.5 ft) long Tine finish
    - Hose connection up to 10m (32.8 ft)
    Turking Fork density meter 25
    Display functions
    - View process variables.
    - Touch screen transmitters.
    - Supports multiple languages ( English and Chinese)
    Turking Fork density meter 26
    Transmitter output channels
    - Current output, 4- 20 mA
    - Frequency output, 0- 1KHz
    - Modbus/RS-485 output
    - HART optional
    Turking Fork density meter 27
    Meter approvals, calibrations, and certifications Agencies & types of approval available
    - CE
    - ATEX
    - ISO 19001
    - ISO 14001
    - OHSAS 18001

    Shape selection table

    DMF-1(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)(11)
    CodeFork Material
    1Suffix CodeFork Material

    ASS316L

    BHC Hastelloy

    CSS316 Lwith PTFE

    DHC Hastelloy with PTFE
    2CodeOutput

    E4-20mA 0-1000Hz RS485 Modbus RTU
    3CodePower Supply

    A24VDC

    B220VAC
    4CodeTransmitter Casing Material

    FAluminium Alloy
    5CodePressure                Class

    161.6MPa

    404.0MPa

    XXXSpecial setting connection can be ordered
    6CodeProcess Connection

    ADN50 HG/T 20592-2009RF

    BChuck Connection

    XXXSpecial setting connection can be ordered
    7CodeLength

    128Standard 128mm

    XXXSpecial length can be ordered
    8CodeExtension Pipeline Mateiial

    AWithout extension pipeline

    BSS316L

    CHC Hastelloy

    DSS316L with PTFE

    EHC Hastelloy with PTFE
    9CodeFlange Material

    ASS316L

    BHC Hastelloy

    CSS316L with PTFE

    D HC Hastelloy with PTFE
    10CodeInstallation Method

    A(XX)Horizontal Pipeline (XX:Pipeline Size)

    B(XX)Vertical Pipeline (XX:Pipeliiie Size)

    CTank Installation

    DOther installation method can be special ordered
    11Code

    Factoiy Setting


    GFactory Setting Options
