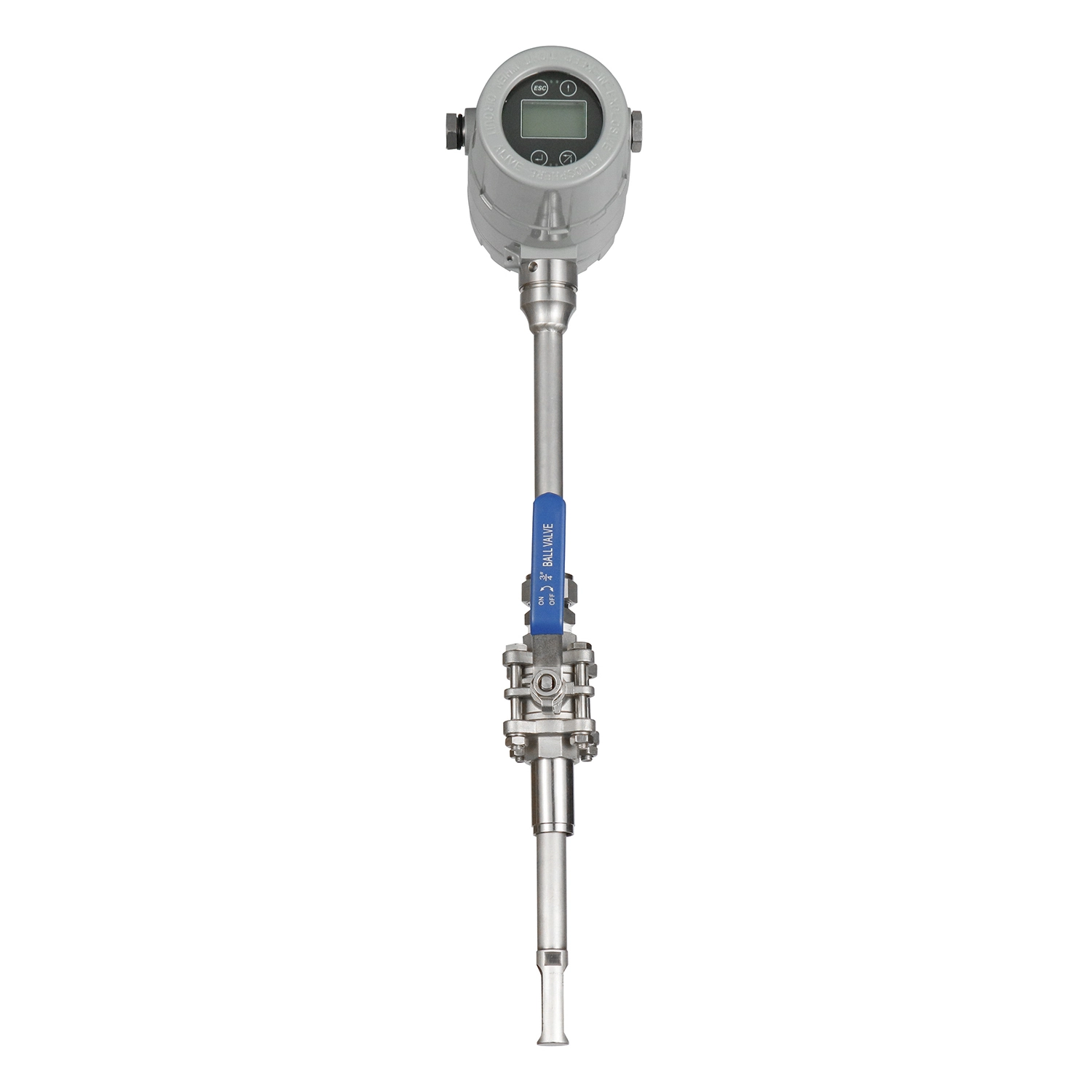

High quality thermal gas flow meter

● Dual line LCD display with 3 setting button

● No pressure loss and it can be used on pipes from 1″ to 20″

● It has more compact design, which means smaller enclosure and thinner insertion tube probe

● Measure mass flow and standard flow directly

● It has self diagnostic function

● It has high accuracy data acquisition circuit

● High effective design of power supply

● Wide Turndown ratio 100:1

● Due to the thin diameter probe, it can be installed in pipe very easily and without stopping all the process

● Cost-effective model

Inquiry

Write a Review

Thermal mass flowmeters are suitable for all industrial and test platform applications that require fast, accurate gas measurement. The flowmeter directly indicates the mass flow or standardized volume flow of the gas without any additional pressure and temperature compensation. They have impressive high accuracy, short response times and a very wide flow range, with almost no loss of accuracy even at the lowest flow.

Video Display

Hot gas mass flowmeter

SGS video

Product introduction

Thermal mass flowmeters are suitable for all industrial and test rig applications that demand quick and precise gas measurement. The flowmeters directly indicate the mass flow or normalized volume flow of gases without any additional pressure and temperature compensation. They have an impressively high accuracy, short response time and a very wide flow range with virtually no loss of accuracy even at the lowest flow rates.

Product Details

Beijing Sincerity, 32 years of experience, excellence in Coriolis production.

Touch screen transmitter

We have our own patented touch screen transmitters with DSP core processor with faster data processing speed.

Light sensing transmitter

Traditional light sensing transmitters. This is the technology for us for the last generation. They have a disadvantage that they will be dis-functional under the strong light in the outdoors.

OEM Nameplate

We support OEM lables. We can customize everything on lables for you, even for the inner software.

Waterproof hole

Waterproof & Explosion- proof threading hole.
With explosion proof rate of ExdibIICT6Gb.

OUTPUT:

4-20mA, Standard RS 485 communication protocol

CONNCETIONS

The connections can be customized , including flanges, threaded connections, etc. We will also include the ball head along with the thermal flow meters.

Material

The material is standard SS 316L

Circuit

We are providing the new generation of DSP transmitters with faster data processing.

Sensor

The sensor of thermal mass flow meters include two sensors. One is to heat the air, and the other one is to sense the heat took away by the flowing of air.

INSERTION TYPE; PIPELINE TYPE

For the pipeline size below DN65, it is recommended to use the pipeline type. While for the pipeline size higher than DN65, it is recommended to use the insertion type.
