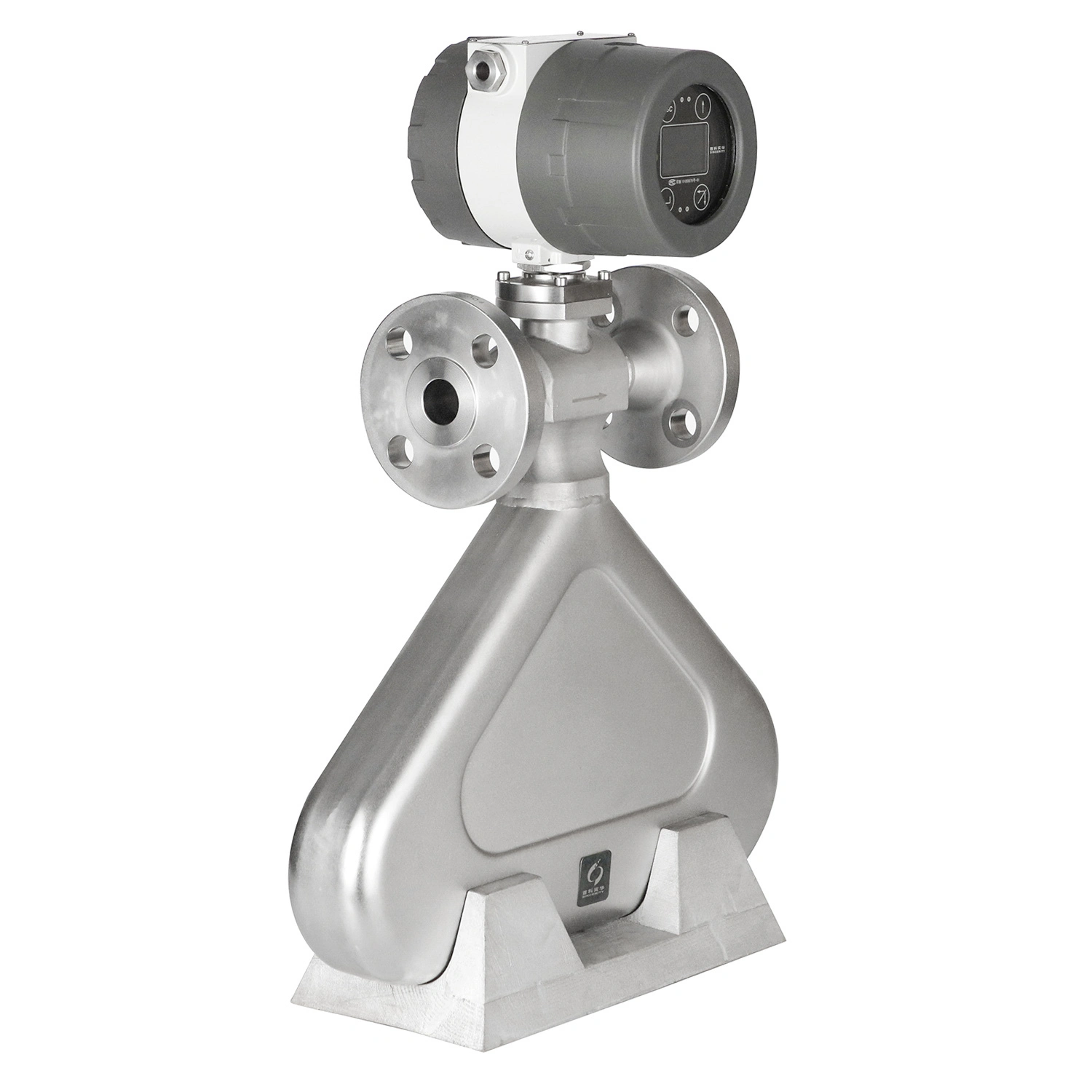

Triangle shape coriolis mass flow meter

● Triangle shap  bent tube design
●  For all industries, and all process and custody transfer applications.
●  Universal measuring principle for liquids and gases
● Multivariable measurement- simultaneous measuring of mass flow, density, temperature
● High measuring accuracy: typically ±0.2%, ±0.1% o.r., optionally: ±0.05%
● Coriolis flow meter working principle independent of the physical fluid properties and the flow profile
● Easy to install (low risk of gas bubble inclusion)
● No recalibration required after fluid change
● No installation straight line necessary
● No temperature or pressure compensation necessary
● No periodical recalibration required

    oops...!

    no product data.

    Go to homepage

    Video Display

    The triangular flow meter is the most compact in our range of Coriolis mass flow meters, designed specifically to provide optimum performance in low-flow applications. It comprises a single flow tube which is considerably smaller in size than the conventional

    U-shaped tube.Each Coriolis flowmeter has one or more measuring tubes. As soon as the fluid starts to flow in the measuring tube, additional twisting is imposed on this oscillation due to the fluid's inertia. Two sensors detect this change of the tube oscillation in time

    and space as the “phase difference.”Coriolis mass flow meter principle: A Coriolis meter is based on the principles of motion mechanics. When the process fluid enters the coriolis mass flow sensor, it is split. During operation, a drive coil stimulates the tubes to oscillate in opposition

    at the natural resonant frequency. As the tubes oscillate, the voltage generated from each pickoff creates a sine wave.

    Triangle shape coriolis mass flow meter 8

    Product introduction

    Coriolis mass flow meters are the most accurate measuring method in the world. The coriolis flow meter principle is used in a wide range of different branches of industry, such as the life sciences, chemicals, petrochemicals, oil and gas, food, and- no less importantly - in custody transfer applications. Coriolis flowmeters can measure virtually all fluids: cleaning agents, solvents, fuels, crude oil, vegetable oils, animal fats, latex, silicon oils, alcohol, fruit solutions, toothpaste, vinegar, ketchup, mayonnaise, gases or liquefied gases.

    The Sincerity DMF series triangle shape is the standard high performance coriolis mass flowmeters for the process industry. The U shape bent tube meter offers superior performance and high accuracy in virtually any application. From process control in (petro) chemical applications to concentration measurements in the food and beverage industry to custody transfer filling and transport measurements in the oil and gas industry. Its high-end options also make the DMF-1 Series U-shape the optimum device for cryogenic media like Liquefied Natural Gas (LNG) with temperatures down to -200°C / -392°F as well as coriolis flow meter applications involving high operating temperatures (up to 350°C / 662°F) or pressures (up to 250 barg / 3700 psig).

    Triangle shape coriolis mass flow meter 9

    Coriolis flow measuring principle

    Each Coriolis flowmeter has one or more measuring tubes which an exciter causes to oscillate artificially. As soon as the fluid starts to flow in the measuring tube, additional twisting is imposed on this oscillation due to the fluid’s inertia. Two sensors detect this change of the tube oscillation in time and space as the “phase difference.” This difference is a direct measure of the mass flow.

    In addition, the fluid density can also be determined from the oscillation frequency of the measuring tubes. The temperature of the measuring tube is also registered to compensate thermal influences. The process temperature derived from this is available as an additional output signal.

    Coriolis flow meter how it works?How does a Sincerity Coriolis flow meter measure mass flow and density?

    Coriolis mass flow measurement is the MOST ACCURATE FORM for a flow measurement for a wide range of industrial processes. Each Coriolis flowmeter has one or more measuring tubes.

    As soon as the fluid starts to flow in the measuring tube, additional twisting is imposed on this oscillation due to the fluid's inertia. Two coriolis mass flow sensors detect this change of the tube oscillation in time and space as the “phase difference.”
    Phase difference= mass flow
    Oscillation frequency= density

    Triangle shape coriolis mass flow meter 10

    Product Details

    Beijing Sincerity Group, 32 years of experience, excellence in Coriolis production.

    Triangle shape coriolis mass flow meter 11
    Touch screen transmitter
    We have our own patented touch screen transmitters with DSP core processor with faster data processing speed.
    Triangle shape coriolis mass flow meter 12
    Light sensing transmitter
    Traditional light sensing transmitters. This is the technology for us for the last generation. They have a disadvantage that they will be dis-functional under the strong light in the outdoors.
    Triangle shape coriolis mass flow meter 13

    OEM Nameplate

    We support OEM lables. We can customize everything on lables for you, even for the inner software.

    Triangle shape coriolis mass flow meter 14

    Waterproof hole

    Waterproof & Explosion- proof threading hole.
    With explosion proof rate of ExdibIICT6Gb.

    Triangle shape coriolis mass flow meter 15

    CONNECTIONS:

    Connections can be specially customized based on your own requirements. GB Flange/ ANSI/ DIN/ JIS Flanges / threaded connections/ Tri-clamp connections, etc.

    Triangle shape coriolis mass flow meter 16

    Integrated type/ Separated type

    Can be customized as your requirements. For the high temperature measurement with more than 150℃, it is recommended to use the separated type. Standard cable length of 1 meter.

    Triangle shape coriolis mass flow meter 17

    OUTPUT:

    4-20mA, 0-10KHz, Standard RS 485 communication protocol, HART

    Triangle shape coriolis mass flow meter 18

    Material:

    We can customize the materials for you as your requirements, including SS316L, HC Hastelloy, SS 2205 steel, Titanium ,C4 HASTELLOY, etc.

    Choose your own customized coriolis flowmeters

    Application

    U-SHAPE

    Triangle shape coriolis mass flow meter 19

    TRIANGLE TYPE

    Triangle shape coriolis mass flow meter 20

    MICRO BEND V-HAPE

    Triangle shape coriolis mass flow meter 21

    Most common

    CNG/ LNG/ LPG dispensers

    High viscosity & high pressure applications

    Pipeline size

    DN1-DN300

    DN10-DN25

    DN10-DN300

    Minimum flow rate

    0-1kg/h

    0-1500kg/h

    0-1000kg/h

    Maximum flow rate

    0-1000t/h

    0-10t/h

    0-1000t/h

    Characteristics

    Flow range calibrated can be compressed. The classic typical type with more than 30 years histroy.

    More popular with cng/lpg/lng dispensers, with even smaller size with most advanced technology.

    More popular with pipeline size bigger than dn80, with smaller size and lower pressure drop. Most suitable for high viscosity liquids.

    Specifications

    Flow Range

     See charts below

    Connection

     ANSI, DIN, JIS, or Sanitary Tri-Clamp flanges, etc. ( Connections can be customized)

    Maximum Pressure

     16 bar (230 psi), [Optional 40 bar (580 psi), up to 1000 bar (14504 psi)]

    Body Material

     304 Stainless Steel

    Measuring Tube Material

     316 L SS, HC Hastelloy, 316L SS + PTFE, HC + PTFE, etc. ( materials can be customized)

    Process Temperature Range

    Integrate Type

     -50 to 15°C (-58 to 302°F)

    Remote Type (-R)

     -50 to 35°C (-58 to 662°F)

    Ambient Temperature

     -40 to 55°C (-40 to 131°F)

    Working Humidity

     (5 to 95%) RH at 25°C (77°F)

    Flow Accuracy

     0.2/ 0.1/ 0.05% (Liquid), 0.5% (gas)

    Density measuring

    Range

     0.2 to 3.0 g/cm3

    Error

     ± 0.002 g/cm3, ± 0.001 g/cm3

    Repeatability

     0.001 g/cm3

    Temperature Accuracy

     ±1.0°C

    Protection

     IP67

    Approvals

     ATEX, CE, ISO9001, ISO14001, OHSAS18001

    Communications

     RS485 (RTU Modbus), HART (-HART option)

    Pulse Output

     0 to 10 kHz

    Current Output

     4 to 20 mA

    Power Supply

     24VDC, 220VAC (universal power source option)

    Downloads

    Typical Applications

    Triangle shape coriolis mass flow meter 25
    General
    - Liquids with transient gas entrainment
    - Cryogenic or high temperatures (-200…+400°C /-328…+752°F)
    - Super critical gases
    - Custody transfer (CT)
    Triangle shape coriolis mass flow meter 26
    Chemical and other process industries
    - Concentration and density measurement
    - Bulk loading
    - Batching and blending to reactors
    - Hydrocarbon cracking
    Triangle shape coriolis mass flow meter 27
    Oil and gas industry
    - Metering skids, bulk loading, pipeline transfer
    - "Bypass" density measurement
    - Liquefied Natural Gas (LNG)
    - Bulk loading
    - In-line density measurement
    - Multiphase measurement in upstream applications
    Triangle shape coriolis mass flow meter 28
    Food and beverage industry
    - Batching, dosing, filling
    - Mass flow measurement of ice cream and milk (e.g. at the raw milk reception)
    - Measurement of flow, density, specific gravity in brewing processes - Dosing of hop extract
    - Measurement of Brix, density and flow in fruit juices
    - Dosing of natural oils, grease, vegetables (e.g. spinach) etc.
    - CO2 injection in soft drink production
    Triangle shape coriolis mass flow meter 29
    Pharmaceutical industry
    - Batching, dosing, filling
    - Solvent extraction
    Triangle shape coriolis mass flow meter 30
    Marine industry
    - Bunkering and fuel consumption measurement
    Triangle shape coriolis mass flow meter 31
    Pulp and paper industry
    - Additives, bleaches and colourants
    - Crystallising, solidifying and cryogenic products

    Shape selection table

    DMF-1(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)(11)(12)(13)(14)(15)
    Model DMF-1Description
    1Suffix CodeProcess Connection SizeMeasuring Range

    3CLS1010mm0-1.5t/h For high viscosity liquids/ gases, etc.

    3CLS1515mm0-2.0t/h For high viscosity liquids/ gases, etc.

    3CLS2020mm0-2.5t/h For high viscosity liquids/ gases, etc.

    3CLS2525mm0-10t/h For high viscosity liquids/ gases, etc.
    2CodeAccuracy

    A±0.50%

    N±0.20%

    M±0.15%

    H±0.10%
    3CodeSensor Temperature (Above 250°C and below -50°C the transmitter are separated installation.)

    A-50-150 °C

    B-50-250 °C

    C-50-350 °C

    D-200-150°C
    4CodePressure

    161.6MPa

    404.0MPa

    XXWith customer specified pressure
    5CodeMaterial of wetted parts

    AStainless Steel 316L

    CHastelloy C

    DInner Wall Surface with PTFE spray(Large size only)

    ESpecial Order: With customer specified material
    6CodeProcess Connection

    FFlange          GB/T 9123.1-2000 ANSI Weld Neck Flanges-ANSI Bl 6.5

    WSanitary connection

    LThreaded connection

    TSpecial oder, with customer specified connection
    7CodeSensor Housing

    AStainless Steel 304

    BStainless Steel 316L
    8CodeTransmitter

    AIntegrative Installation

    BSeperate Installation(connector length),with holder
    9CodeTransmitter Temperature

    A-20~50 °C

    B-40~80 °C
    10CodeOutput

    AOne 4-20mA, One 0-10KHz, ModBus 485,Hart

    BOne 4-20mA, One 0-10KHz, Profit PD or PA Bus

    COne 4-20mA, One 0-10KHz,  FF,  Hart
    11CodeTesting Certificate

    FFactory, Factory certificate

    IGB, Third party certificate
    12CodeLanguage

    AChinese

    BEnglish
    13CodeTransmitter Housing;

    BDiecasted aluminum alloy housing Wiring Hold Size: M2Ox1.5

    CDiecasted aluminum alloy housing Wiring Hold Sze: 1/2"NPT
    14CodeExplosion Prrof

    FEx db ia [ia Ga] IIC T6 Gb; Ex  tb  IIIC T80℃ Db
    15CodeProtection Grade

    AIP67

    Product Selection

    Model

    Nominal line size

    Maximum flow rate

    Working Pressure

    Connection type

    Inch

    mm

    lb/min

    Kg/h

    MPa


    3CLS10

    3/8"

    10

    56

    1500

    0~4

    Flange 10

    3CLS15

    1/2"

    15

    73

    2000

    0~4

    Flange 15

    3CLS20

    3/4"

    20

    111

    3000

    0~4

    Flange 20

    3CLS25

    1"

    25

    370

    10,000

    0~1.6

    Flange 25

    Triangle shape coriolis mass flow meter 32
