Customized Coriolis Mass Flow Meter Factory

Product Display

THE MOST ACCURATE MEASURING METHOD IN THE WORLD

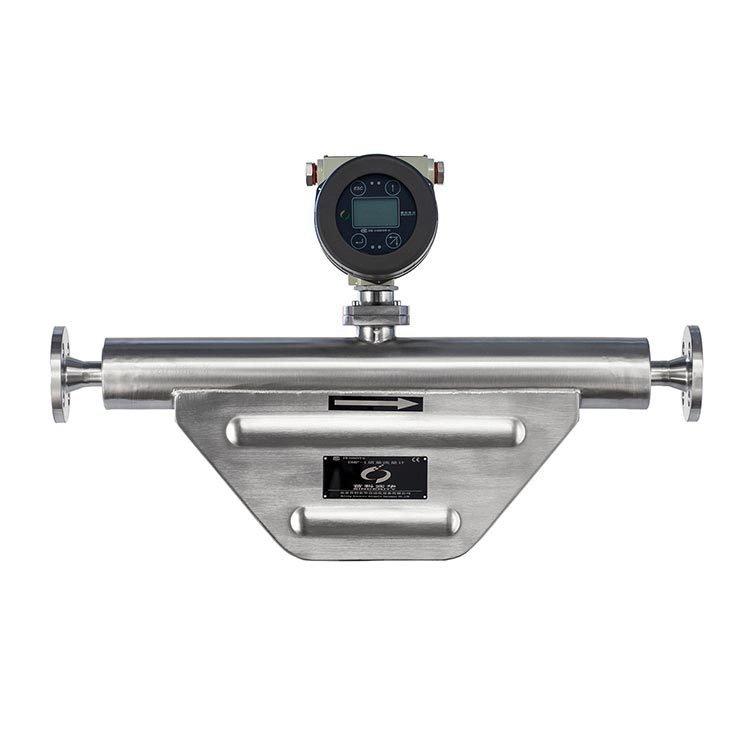

Micro bend V-shape coriolis mass flow meter

Triangle type coriolis mass flow meter

U shape coriolis mass flow meter

Screen Comparison

Beijing Sincerity, 32 years of experience, excellence in Coriolis production.

We are the ONLY Chinese supplier providing TOUCH SCREEN TRANSMITTERS, with DSP core processor, with faster data processing speed.

Light sensing transmitters. They will be easily dis-functional under the strong light in the outdoors.

Product advantage

CONNECTIONS:

Connections can be specially customized based on your own requirements. GB Flange/ ANSI/ DIN/ JIS Flanges / threaded connections/ Tri-clamp connections, etc.

OUTPUT:

4-20mA, 0-10KHz, Standard RS 485 communication protocol, HART

Material:

We can customize the materials for you as your requirements, including SS316L, HC Hastelloy, SS 2205 steel, Titanium, etc.

Integrated type/ Separated type

Can be customized as your requirements. For the high temperature measurement with more than 150℃, it is recommended to use the separated type. Standard cable length of 1 meter.

Waterproof & Explosion- proof threading hole.
With explosion proof rate of ExdibIICT6Gb.

OEM We support OEM lables. We can customize everything on lables for you, even for the inner software.

Choose your own customized

Coriolis mass flow meters

Application	U-SHAPE	TRIANGLE TYPE	MICRO BEND V-HAPE
Application	Most common	CNG/ LNG/ LPG dispensers	High viscosity and super
Pipeline size	DN1-DN300	DN10-DN25	DN10-DN300
Minimum flow rate	0-1kg/h	0-1500kg/h	0-1000kg/h

Parameters of mass flowmeter

Model	Nominal line size		Maximum flow rate		Working Pressure	Connection type
Model	Inch	Mm	lb/min	Kg/h	MPa	Mm
DMF-1-1-A	1/8"	DN 3	1.47	40	0~4	Weld Joints Φ6×1.5
DMF-1-1-B	1/6"	DN 6	3.67	100	0~4	Weld Joints Φ10×2
DMF-1-2-A	1/4"	DN 8	7.35	200	0~4	Weld Joints Φ10×1
DMF-1-3-A	3/8"	10	18.3	500	0~4	Flange 10
DMF-1-3-B	1/2"	15	36.7	1000	0~4	Flange 15
DMF-1-4	3/4"	20	110	3000	0~4	Flange 20
DMF-1-5-A	1"	25	370	10,000	0~1.6	Flange 25
DMF-1-5-B	1-1/2"	40	730	20,000	0~1.6	Flange 40
DMF-1-6-A	2"	50	1100	30,000	0~1.6	Flange 50
DMF-1-6-AB	2-1/2"	65	1800	50,000	0~1.6	Flange 65
DMF-1-6-B	3"	80	3700	100,000	0~1.6	Flange 80
DMF-1-6-C	4"	100	5600	150,000	0~1.6	Flange 100
DMF-1-6-CD	5"	125	7400	200,000	0~1.6	Flange 125
DMF-1-6-D	6"	150	11000	300,000	0~1.6	Flange 150
DMF-1-6-E	8"	200	18000	500,000	0~1.6	Flange 150

Customized Coriolis mass flow meter
