High-quality Coriolis Flow Transmitter Company

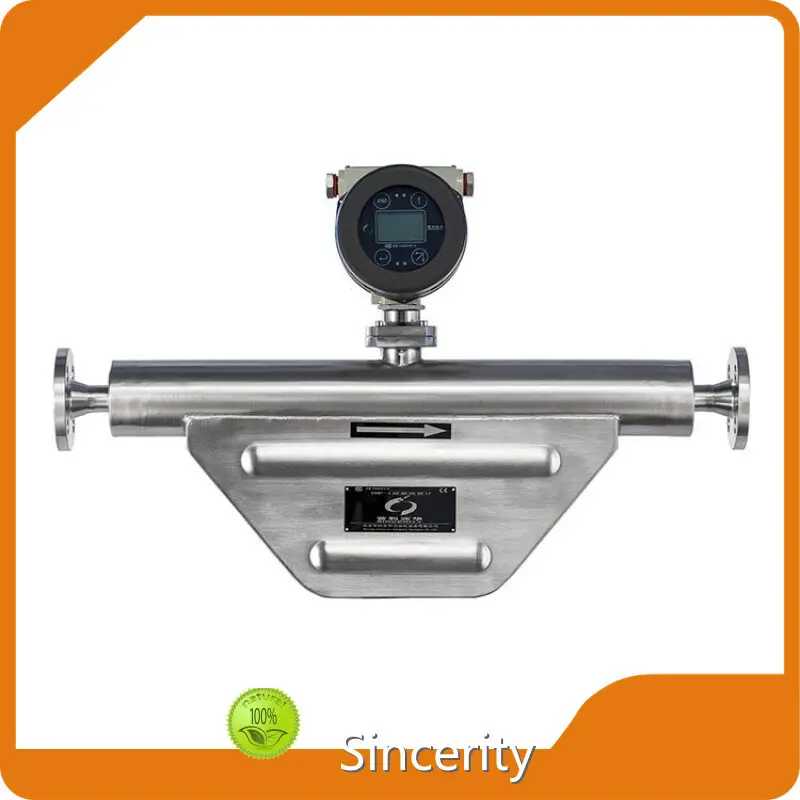

Product details of the coriolis flow transmitter
Quick Overview
Sincerity Group coriolis flow transmitter is designed by adroit professionals in sync with industry norms. Comparing to other products, our coriolis flow transmitter has more evident advantages in function. The product has become the focus of the industry and embraces a bright application prospect.
Product Description
Compared with similar products, our company's coriolis flow transmitter has the following outstanding features.
Product Display
THE MOST ACCURATE MEASURING METHOD IN THE WORLD
Screen Comparison
Beijing Sincerity, 32 years of experience, excellence in Coriolis production.
Product advantage
CONNECTIONS:
Connections can be specially customized based on your own requirements. GB Flange/ ANSI/ DIN/ JIS Flanges / threaded connections/ Tri-clamp connections, etc.
OUTPUT:
4-20mA, 0-10KHz, Standard RS 485 communication protocol, HART
Material:
We can customize the materials for you as your requirements, including SS316L, HC Hastelloy, SS 2205 steel, Titanium, etc.
Integrated type/ Separated type
Can be customized as your requirements. For the high temperature measurement with more than 150℃, it is recommended to use the separated type. Standard cable length of 1 meter.
Waterproof & Explosion- proof threading hole. With explosion proof rate of ExdibIICT6Gb.
OEM We support OEM lables. We can customize everything on lables for you, even for the inner software.
Choose your own customized
Coriolis mass flow meters
Application | U-SHAPE | TRIANGLE TYPE | MICRO BEND V-HAPE |
Most common | CNG/ LNG/ LPG dispensers | High viscosity and super | |
Pipeline size | DN1-DN300 | DN10-DN25 | DN10-DN300 |
Minimum flow rate | 0-1kg/h | 0-1500kg/h | 0-1000kg/h |
Parameters of mass flowmeter
Model | Nominal line size | Maximum flow rate | Working Pressure | Connection type | ||
Inch | Mm | lb/min | Kg/h | MPa | Mm | |
DMF-1-1-A | 1/8" | DN 3 | 1.47 | 40 | 0~4 | Weld Joints Φ6×1.5 |
DMF-1-1-B | 1/6" | DN 6 | 3.67 | 100 | 0~4 | Weld Joints Φ10×2 |
DMF-1-2-A | 1/4" | DN 8 | 7.35 | 200 | 0~4 | Weld Joints Φ10×1 |
DMF-1-3-A | 3/8" | 10 | 18.3 | 500 | 0~4 | Flange 10 |
DMF-1-3-B | 1/2" | 15 | 36.7 | 1000 | 0~4 | Flange 15 |
DMF-1-4 | 3/4" | 20 | 110 | 3000 | 0~4 | Flange 20 |
DMF-1-5-A | 1" | 25 | 370 | 10,000 | 0~1.6 | Flange 25 |
DMF-1-5-B | 1-1/2" | 40 | 730 | 20,000 | 0~1.6 | Flange 40 |
DMF-1-6-A | 2" | 50 | 1100 | 30,000 | 0~1.6 | Flange 50 |
DMF-1-6-AB | 2-1/2" | 65 | 1800 | 50,000 | 0~1.6 | Flange 65 |
DMF-1-6-B | 3" | 80 | 3700 | 100,000 | 0~1.6 | Flange 80 |
DMF-1-6-C | 4" | 100 | 5600 | 150,000 | 0~1.6 | Flange 100 |
DMF-1-6-CD | 5" | 125 | 7400 | 200,000 | 0~1.6 | Flange 125 |
DMF-1-6-D | 6" | 150 | 11000 | 300,000 | 0~1.6 | Flange 150 |
DMF-1-6-E | 8" | 200 | 18000 | 500,000 | 0~1.6 | Flange 150 |
Other Products
Company Advantages
Situated in Beijing Sincerity Automatic Equipment Co., Ltd is a comprehensive company. We are mainly engaged in the business of coriolis mass flow meter,thermal mass flow meter,fork density meter. To be a well-known enterprise in China, Sincerity implements the development concept of 'innovation, coordination, green, openness, and sharing' proposed by the central government, and adheres to the important concept of 'keeping the new and the right way'. Our company has a professional and technical team, and regularly trains the team to improve their comprehensive strength. They can provide technical support for production and research and development of the products. Our solutions are developed by understanding the customer's situation and combining the current market conditions. Therefore, they are all targeted and can effectively solve problems of customers.
Our products are available in various types and reasonable price. Welcome people from all walks of life to inquire and discuss business.
