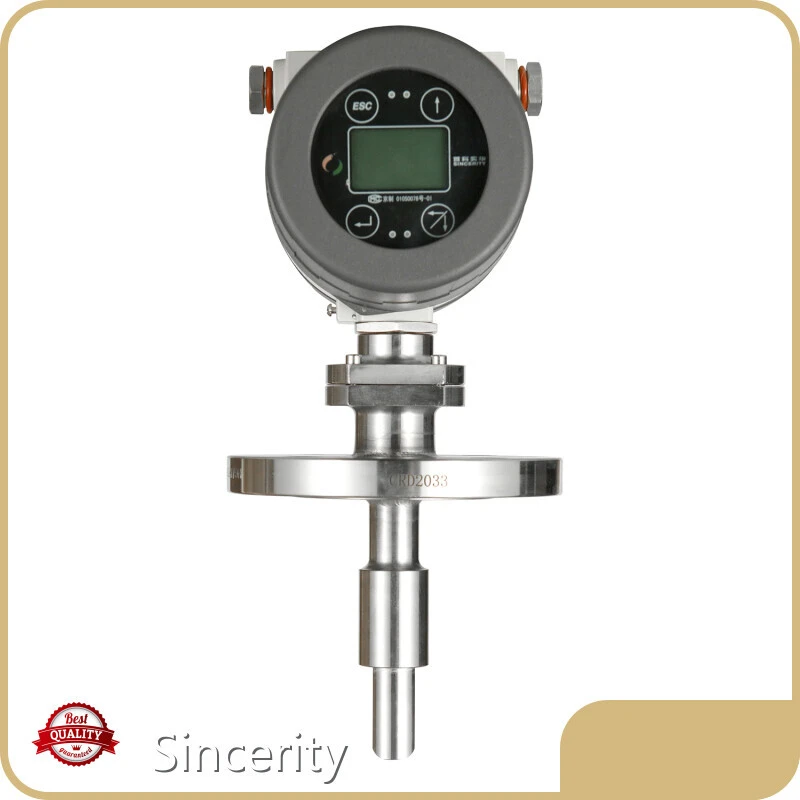

Fork Density Meter Micro Motion Supply 1

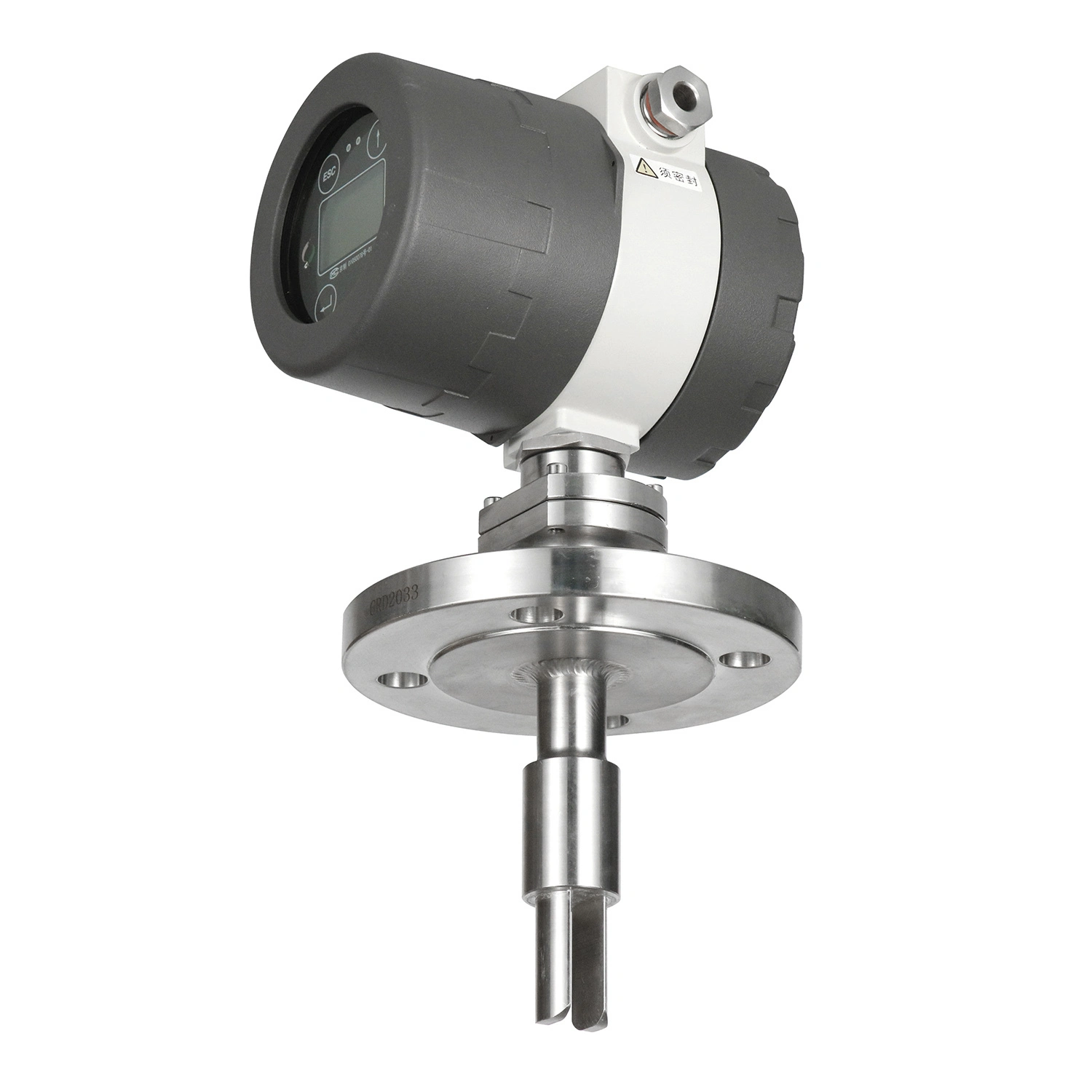

Fork Density Meter Micro Motion Supply 2

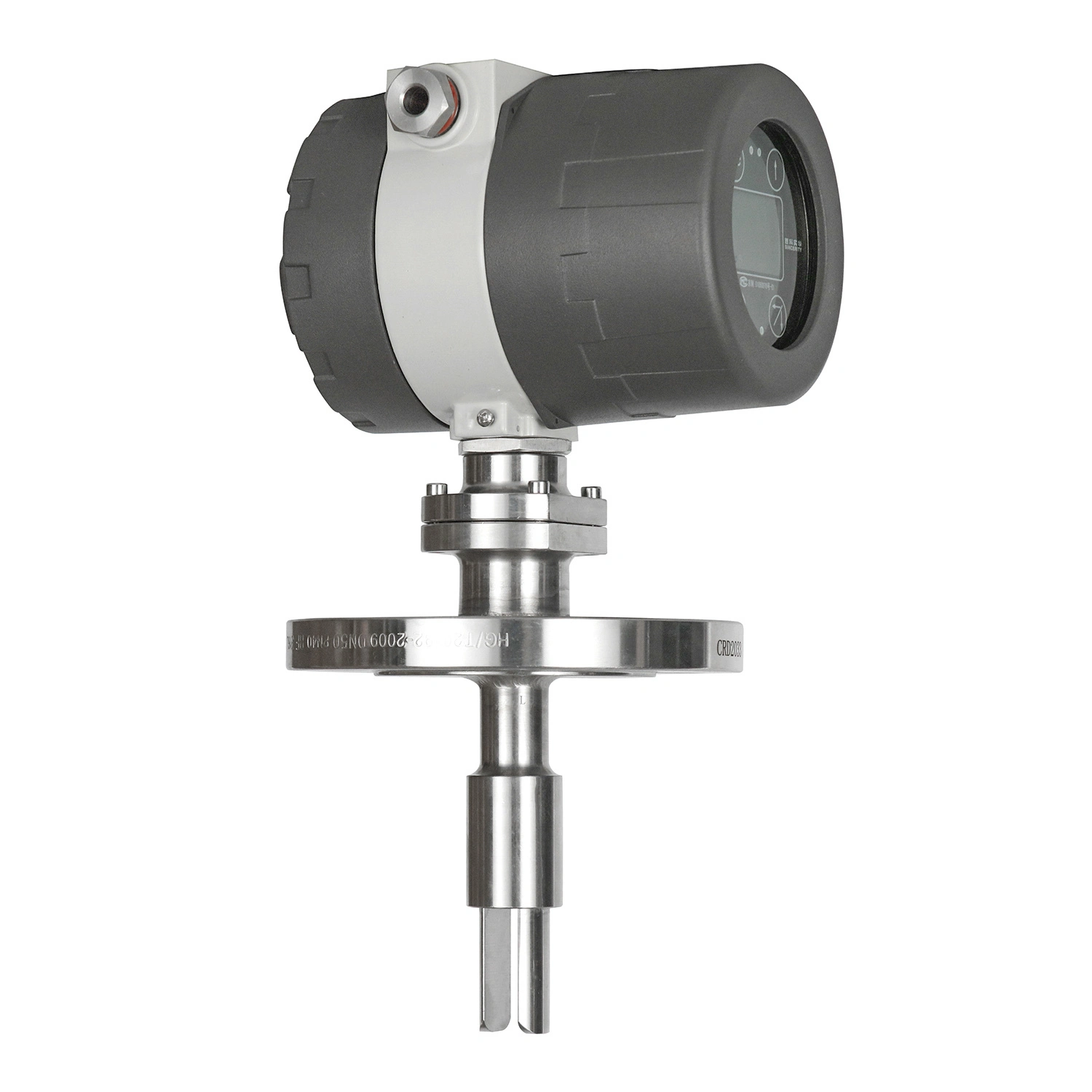

Fork Density Meter Micro Motion Supply 3

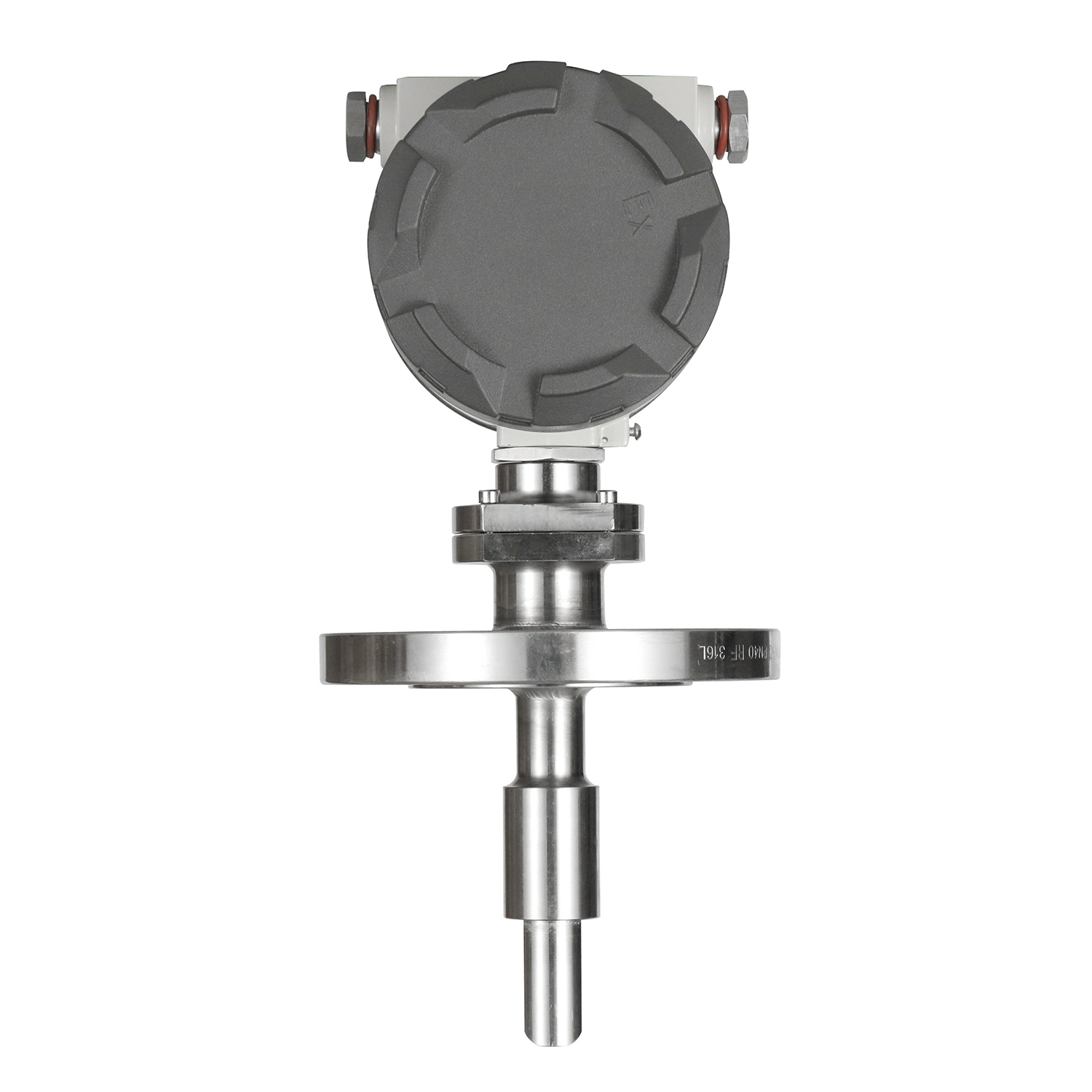

Fork Density Meter Micro Motion Supply 4
Fork Density Meter Micro Motion Supply 1
Fork Density Meter Micro Motion Supply 2
Fork Density Meter Micro Motion Supply 3
Fork Density Meter Micro Motion Supply 4

Fork Density Meter Micro Motion Supply

Inquiry

Product details of the fork density meter micro motion


Product Overview

Always applying the best design idea into our fork density meter micro motion is one of the reasons why they are so popular. It has been tested by the harsh international first-class inspection standards. fork density meter micro motion is one of the main products of Sincerity. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers. Under strict quality tests, fork density meter micro motion is of high quality when arriving to customers.


Product Description

Sincerity will present you fork density meter micro motion's details in the following section.

Fork density meter can measure the density, concentration, gravity, temperature, and accuracy of liquids without being affected by temperature, pressure, density, and viscosity. Applications: Pipeline interface inspection, slurry solids monitoring and corrosive acid concentration control; density and concentration monitoring that require rapid response. Continuously measure pipelines in real-time through pipelines and storage tanks to increase installation flexibility and choose from a variety of corrosion-resistant materials to measure the density and concentration of key chemicals. Supports protocols connected to DCS, PLC and flow computers. Pass Hazardous Area Approved Head-Mounted Transmitters extend the range of use, the transmitter supports local configuration and display.

Video Display

Fork Density Meter Micro Motion Supply 5
PTFE coated material fork density meter
Fork Density Meter Micro Motion Supply 6
SS 316L material fork density meters
Fork Density Meter Micro Motion Supply 7
Gold plated material fork density meter
Fork Density Meter Micro Motion Supply 8
PTFE coated material fork density meter
Fork Density Meter Micro Motion Supply 9
Fork density meter details

Product Details

Beijing Sincerity, 32 years of experience, excellence in Coriolis production.

Fork Density Meter Micro Motion Supply 10
Touch screen transmitter
We have our own patented touch screen transmitters with DSP core processor with faster data processing speed.
Fork Density Meter Micro Motion Supply 11
Light sensing transmitter
Traditional light sensing transmitters. This is the technology for us for the last generation. They have a disadvantage that they will be dis-functional under the strong light in the outdoors.
Fork Density Meter Micro Motion Supply 12

OEM Nameplate

We support OEM lables. We can customize everything on lables for you, even for the inner software.

Fork Density Meter Micro Motion Supply 13

Waterproof hole

Waterproof & Explosion- proof threading hole. With explosion proof rate of ExdibIICT6Gb.

Fork Density Meter Micro Motion Supply 14

Insertion type/ Pipeline type

The flow velocity should be below 1.5m/s. If the flow velocity is too fast, or the pipe diameter is too small, it is recommended to expand the pipeline to at least DN 150.

Fork Density Meter Micro Motion Supply 15

Length

The standard length of the turning fork is 128mm. We can extend the length of the turning fork based on the special requirements.

Fork Density Meter Micro Motion Supply 16

OUTPUT:

4-20mA, 0-1KHz, Standard RS 485 communication protocol, HART

Fork Density Meter Micro Motion Supply 17

Material:

We can customize the materials for you as your requirements, including SS316L, HC Hastelloy, SS 2205 steel, Titanium, etc.

Fork Density Meter Micro Motion Supply 18

CONNECTIONS

Connections can be specially customized based on your own requirements. GB Flange/ ANSI/ DIN/ JIS Flanges / threaded connections/ Tri-clamp connections, etc.

Product Display

Fork Density Meter Micro Motion Supply 19

Downloads

Product Details

Fork Density Meter Micro Motion Supply 22
Specifications
(1)Density accuracy: standard ±2,0 kg/m3(±0,002 g/cm3), ±1,0 kg/m3(±0,001 g/cm3) optional (2)Operating density range: 500-2500 kg/m3 (0.5-2.5 g/cm3) (3)Operating temperature range -short stem: –50 °C a +200 °C (–58 °F a +392 °F) (4)Operating temperature range- long stem: –40 °C a +150 °C (–40 °F a +302 °F)
Fork Density Meter Micro Motion Supply 23
Materials
Wetted parts- short-stem meter ( standard length of 128mm) : - 316L stainless steel - Alloy C276 - 316L stainless steel with PFA coated - Alloy C276 with PFA coated
Fork Density Meter Micro Motion Supply 24
Wetted parts- long-stem meter
- Alloy C276 for meters up to 2 m (6.5 ft) long - 316L stainless steel for meters up to 2 m (6.5 ft) long Tine finish - Hose connection up to 10m (32.8 ft)
Fork Density Meter Micro Motion Supply 25
Display functions
- View process variables. - Touch screen transmitters. - Supports multiple languages ( English and Chinese)
Fork Density Meter Micro Motion Supply 26
Transmitter output channels
- Current output, 4- 20 mA - Frequency output, 0- 1KHz - Modbus/RS-485 output - HART optional
Fork Density Meter Micro Motion Supply 27
Meter approvals, calibrations, and certifications Agencies & types of approval available
- CE - ATEX - ISO 19001 - ISO 14001 - OHSAS 18001

Shape selection table

DMF-1(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)(11)
CodeFork Material
1Suffix CodeFork Material

ASS316L

BHC Hastelloy

CSS316 Lwith PTFE

DHC Hastelloy with PTFE
2CodeOutput

E4-20mA 0-1000Hz RS485 Modbus RTU
3CodePower Supply

A24VDC

B220VAC
4CodeTransmitter Casing Material

FAluminium Alloy
5CodePressure                Class

161.6MPa

404.0MPa

XXXSpecial setting connection can be ordered
6CodeProcess Connection

ADN50 HG/T 20592-2009RF

BChuck Connection

XXXSpecial setting connection can be ordered
7CodeLength

128Standard 128mm

XXXSpecial length can be ordered
8CodeExtension Pipeline Mateiial

AWithout extension pipeline

BSS316L

CHC Hastelloy

DSS316L with PTFE

EHC Hastelloy with PTFE
9CodeFlange Material

ASS316L

BHC Hastelloy

CSS316L with PTFE

D HC Hastelloy with PTFE
10CodeInstallation Method

A(XX)Horizontal Pipeline (XX:Pipeline Size)

B(XX)Vertical Pipeline (XX:Pipeliiie Size)

CTank Installation

DOther installation method can be special ordered
11Code

Factoiy Setting


GFactory Setting Options
