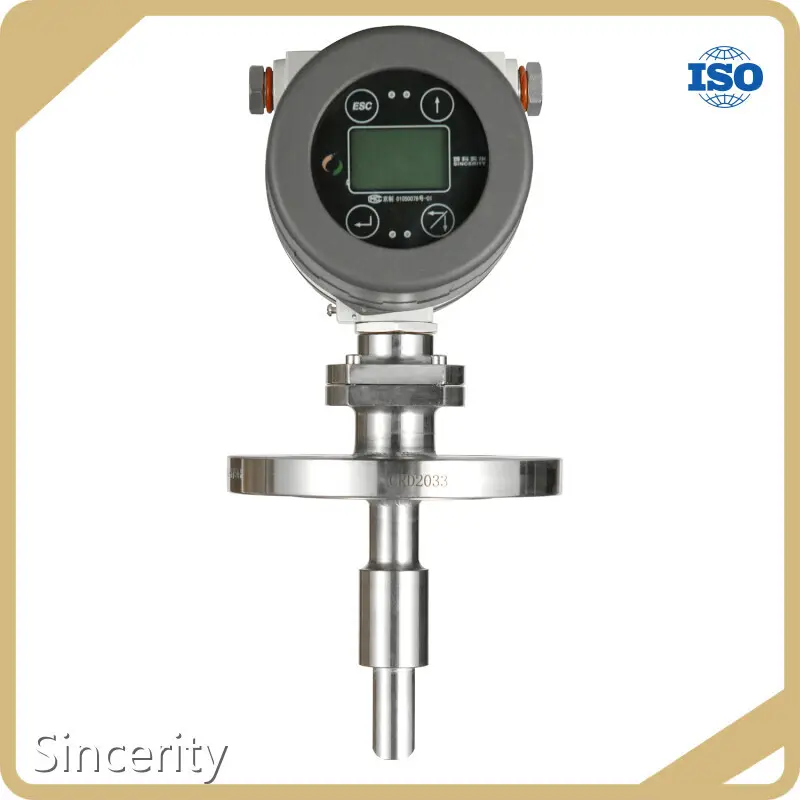

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 1
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 2
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 3
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 4
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 1
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 2
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 3
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 4

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany

Inquiry
Send your inquiry

Company Advantages

· Sincerity Group insertion fork density meter is rich in style to meet different design needs of customers.

· This product strictly complies with performance requirements.

· Beijing Sincerity Automatic Equipment Co., Ltd is backed by its strong technical strength and perfect customer service system.

Fork density meter can measure the density, concentration, gravity, temperature, and accuracy of liquids without being affected by temperature, pressure, density, and viscosity. Applications: Pipeline interface inspection, slurry solids monitoring and corrosive acid concentration control; density and concentration monitoring that require rapid response. Continuously measure pipelines in real-time through pipelines and storage tanks to increase installation flexibility and choose from a variety of corrosion-resistant materials to measure the density and concentration of key chemicals. Supports protocols connected to DCS, PLC and flow computers. Pass Hazardous Area Approved Head-Mounted Transmitters extend the range of use, the transmitter supports local configuration and display.

Video Display

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 5
PTFE coated material fork density meter
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 6
SS 316L material fork density meters
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 7
Gold plated material fork density meter
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 8
PTFE coated material fork density meter
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 9
Fork density meter details

Product Details

Beijing Sincerity, 32 years of experience, excellence in Coriolis production.

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 10
Touch screen transmitter
We have our own patented touch screen transmitters with DSP core processor with faster data processing speed.
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 11
Light sensing transmitter
Traditional light sensing transmitters. This is the technology for us for the last generation. They have a disadvantage that they will be dis-functional under the strong light in the outdoors.
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 12

OEM Nameplate

We support OEM lables. We can customize everything on lables for you, even for the inner software.

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 13

Waterproof hole

Waterproof & Explosion- proof threading hole. With explosion proof rate of ExdibIICT6Gb.

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 14

Insertion type/ Pipeline type

The flow velocity should be below 1.5m/s. If the flow velocity is too fast, or the pipe diameter is too small, it is recommended to expand the pipeline to at least DN 150.

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 15

Length

The standard length of the turning fork is 128mm. We can extend the length of the turning fork based on the special requirements.

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 16

OUTPUT:

4-20mA, 0-1KHz, Standard RS 485 communication protocol, HART

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 17

Material:

We can customize the materials for you as your requirements, including SS316L, HC Hastelloy, SS 2205 steel, Titanium, etc.

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 18

CONNECTIONS

Connections can be specially customized based on your own requirements. GB Flange/ ANSI/ DIN/ JIS Flanges / threaded connections/ Tri-clamp connections, etc.

Product Display

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 19

Downloads

Product Details

Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 22
Specifications
(1)Density accuracy: standard ±2,0 kg/m3(±0,002 g/cm3), ±1,0 kg/m3(±0,001 g/cm3) optional (2)Operating density range: 500-2500 kg/m3 (0.5-2.5 g/cm3) (3)Operating temperature range -short stem: –50 °C a +200 °C (–58 °F a +392 °F) (4)Operating temperature range- long stem: –40 °C a +150 °C (–40 °F a +302 °F)
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 23
Materials
Wetted parts- short-stem meter ( standard length of 128mm) : - 316L stainless steel - Alloy C276 - 316L stainless steel with PFA coated - Alloy C276 with PFA coated
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 24
Wetted parts- long-stem meter
- Alloy C276 for meters up to 2 m (6.5 ft) long - 316L stainless steel for meters up to 2 m (6.5 ft) long Tine finish - Hose connection up to 10m (32.8 ft)
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 25
Display functions
- View process variables. - Touch screen transmitters. - Supports multiple languages ( English and Chinese)
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 26
Transmitter output channels
- Current output, 4- 20 mA - Frequency output, 0- 1KHz - Modbus/RS-485 output - HART optional
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 27
Meter approvals, calibrations, and certifications Agencies & types of approval available
- CE - ATEX - ISO 19001 - ISO 14001 - OHSAS 18001

Shape selection table

DMF-1(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)(11)
CodeFork Material
1Suffix CodeFork Material

ASS316L

BHC Hastelloy

CSS316 Lwith PTFE

DHC Hastelloy with PTFE
2CodeOutput

E4-20mA 0-1000Hz RS485 Modbus RTU
3CodePower Supply

A24VDC

B220VAC
4CodeTransmitter Casing Material

FAluminium Alloy
5CodePressure                Class

161.6MPa

404.0MPa

XXXSpecial setting connection can be ordered
6CodeProcess Connection

ADN50 HG/T 20592-2009RF

BChuck Connection

XXXSpecial setting connection can be ordered
7CodeLength

128Standard 128mm

XXXSpecial length can be ordered
8CodeExtension Pipeline Mateiial

AWithout extension pipeline

BSS316L

CHC Hastelloy

DSS316L with PTFE

EHC Hastelloy with PTFE
9CodeFlange Material

ASS316L

BHC Hastelloy

CSS316L with PTFE

D HC Hastelloy with PTFE
10CodeInstallation Method

A(XX)Horizontal Pipeline (XX:Pipeline Size)

B(XX)Vertical Pipeline (XX:Pipeliiie Size)

CTank Installation

DOther installation method can be special ordered
11Code

Factoiy Setting


GFactory Setting Options
Sincerity Group Insertion Fork Density Meter Insertion Fork Density Metercompany 28

Other Products


Company Features

· Beijing Sincerity Automatic Equipment Co., Ltd is engaged in the production of insertion fork density meter.

· Our factory has done a lot to raise quality levels and striven to establish a sound quality management and guarantee systems. They mainly include IQC, IPQC, and OQC that are conducted together to guarantee high product quality. Our marketing channels spread to many countries and regions around the world. So far, we have a complete sales network and stable cooperation partners in many countries like the USA, the Middle East, and Japan.

· The leading position of Sincerity Group in insertion fork density meter industry can not be assured without the achievement of best shopping user experience. Call!


Application of the Product

Sincerity's insertion fork density meter is widely applicable in the industry.

Sincerity is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.


Product Comparison

Our insertion fork density meter is more competitive than similar products, as shown in the following aspects.


Enterprise Advantages

Our company owns the advanced production equipment and a group of scientific research experts who produce and process squat products. All this offers favorable conditions for us to produce high quality products.

Our company carries out the service model of 'standardized system management, closed-loop quality monitoring, seamless link response, and personalized service'. In this way, we can provide comprehensive and all-around services for consumers.

Sincerity creates value for customers from their perspective, which is aligned with the business concept. We are committed to providing quality products and services depending on talents and technological advantages.

Sincerity was built in After years of integrity management, we have now become a modern enterprise with strong strength and talents.

Sincerity's products are mainly sold to such regions as Southeast Asia, Europe, and Africa.
