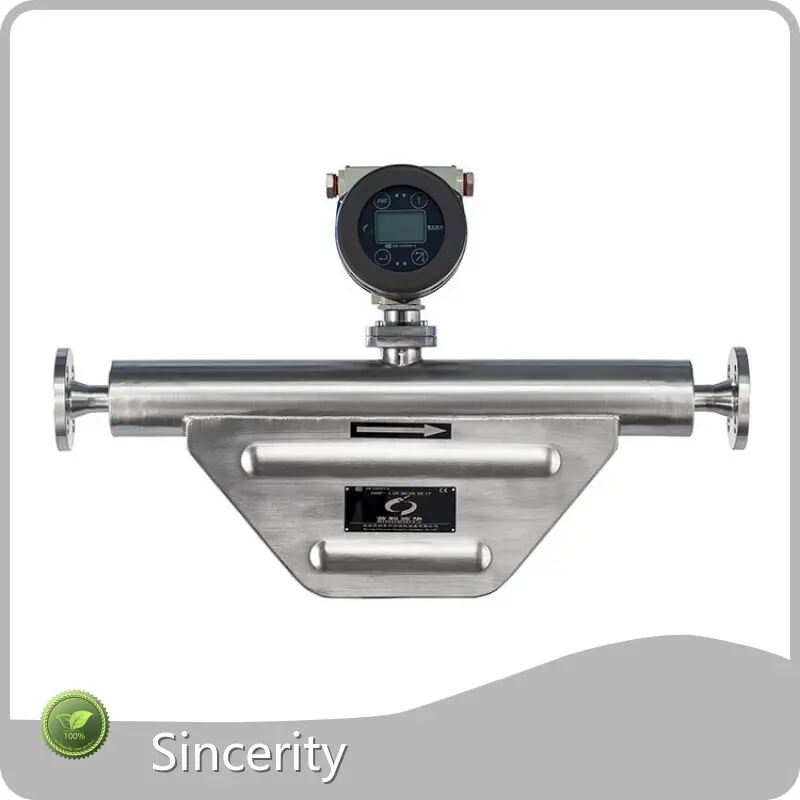

Product details of the coriolis flow meter
Product Overview
Sincerity Group coriolis flow meter is well-structured, bringing visual enjoy. Its quality will be fully tested by our experienced staff before it gets loaded. The coriolis flow meter produced by Sincerity is of high quality. And it is one of the products widely used in the industry. This product creates benefits to customers with a promising prospect.
Product Information
In the production process of coriolis flow meter, we carefully polish the details, so as to strive for perfect quality.
Product Display
THE MOST ACCURATE MEASURING METHOD IN THE WORLD
Screen Comparison
Beijing Sincerity, 32 years of experience, excellence in Coriolis production.
Product advantage
CONNECTIONS:
Connections can be specially customized based on your own requirements. GB Flange/ ANSI/ DIN/ JIS Flanges / threaded connections/ Tri-clamp connections, etc.
OUTPUT:
4-20mA, 0-10KHz, Standard RS 485 communication protocol, HART
Material:
We can customize the materials for you as your requirements, including SS316L, HC Hastelloy, SS 2205 steel, Titanium, etc.
Integrated type/ Separated type
Can be customized as your requirements. For the high temperature measurement with more than 150℃, it is recommended to use the separated type. Standard cable length of 1 meter.
Waterproof & Explosion- proof threading hole. With explosion proof rate of ExdibIICT6Gb.
OEM We support OEM lables. We can customize everything on lables for you, even for the inner software.
Choose your own customized
Coriolis mass flow meters
Application | U-SHAPE | TRIANGLE TYPE | MICRO BEND V-HAPE |
Most common | CNG/ LNG/ LPG dispensers | High viscosity and super | |
Pipeline size | DN1-DN300 | DN10-DN25 | DN10-DN300 |
Minimum flow rate | 0-1kg/h | 0-1500kg/h | 0-1000kg/h |
Parameters of mass flowmeter
Model | Nominal line size | Maximum flow rate | Working Pressure | Connection type | ||
Inch | Mm | lb/min | Kg/h | MPa | Mm | |
DMF-1-1-A | 1/8" | DN 3 | 1.47 | 40 | 0~4 | Weld Joints Φ6×1.5 |
DMF-1-1-B | 1/6" | DN 6 | 3.67 | 100 | 0~4 | Weld Joints Φ10×2 |
DMF-1-2-A | 1/4" | DN 8 | 7.35 | 200 | 0~4 | Weld Joints Φ10×1 |
DMF-1-3-A | 3/8" | 10 | 18.3 | 500 | 0~4 | Flange 10 |
DMF-1-3-B | 1/2" | 15 | 36.7 | 1000 | 0~4 | Flange 15 |
DMF-1-4 | 3/4" | 20 | 110 | 3000 | 0~4 | Flange 20 |
DMF-1-5-A | 1" | 25 | 370 | 10,000 | 0~1.6 | Flange 25 |
DMF-1-5-B | 1-1/2" | 40 | 730 | 20,000 | 0~1.6 | Flange 40 |
DMF-1-6-A | 2" | 50 | 1100 | 30,000 | 0~1.6 | Flange 50 |
DMF-1-6-AB | 2-1/2" | 65 | 1800 | 50,000 | 0~1.6 | Flange 65 |
DMF-1-6-B | 3" | 80 | 3700 | 100,000 | 0~1.6 | Flange 80 |
DMF-1-6-C | 4" | 100 | 5600 | 150,000 | 0~1.6 | Flange 100 |
DMF-1-6-CD | 5" | 125 | 7400 | 200,000 | 0~1.6 | Flange 125 |
DMF-1-6-D | 6" | 150 | 11000 | 300,000 | 0~1.6 | Flange 150 |
DMF-1-6-E | 8" | 200 | 18000 | 500,000 | 0~1.6 | Flange 150 |
