Sincerity v cone flow meter principle factory for petrochemicals
1. High quality materials and advanced technology are adopted for Sincerity v cone flow meter principle .
2. In Beijing Sincerity Automatic Equipment Co., Ltd customers can send us your outside cartons design for our customization.
3. Its clean lines and fresh colours will create a welcoming and relaxing private retreat to a large extent.
4. This product has the advantage of temperature resistance. Temperature variations do not cause significant errors in their stiffness or fatigue resistance, nor do they cause significant errors in any other mechanical properties.

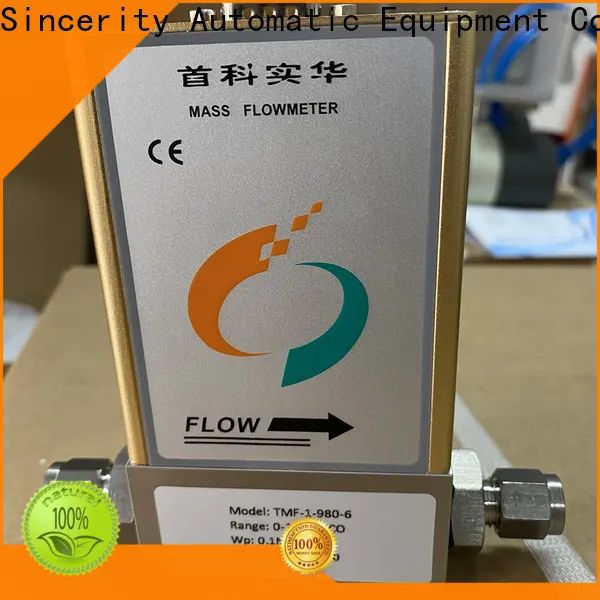

Technical Data for G C -Series Mass Flow Controllers
0.5sccm – 6000 slm Full Scale
Standard Specifications (Contact for available options.)
Performance | GC -Series Mass Flow Controller |
Accuracy at calibration conditions after tare | ± 1% of Full Scale |
High Accuracy at calibration conditions after tare | ±0.5% of Full Scale High Accuracy option not available for units ranged under 5 sccm or over 3000 slm |
Repeatability | ± 0.2% Full Scale |
Zero Shift and Span Shift | 0.2% Full Scale / ºCelsius / Atm |
Operating Range / Turndown Ratio | 2% to 100% Full Scale / 50:1 (100:1 optional) |
Maximum Controllable Flow Rate | 100% Full Scale |
Maximum Measurable Flow Rate | 100% Full Scale |
Typical Response Time | <1000 ms |
Leakage Rate | 1×10-9 atm ·cc/s He |
Operating Conditions | GC -Series Mass Flow Controller |
Mass Reference Conditions (STP) | 25ºC & 14.696 psia (standard — others available on request) |
Operating Temperature | 0 to +50 ºCelsius |
Humidity Range (Non–Condensing) | 0 to 90% |
Maximum Internal Pressure (Static) | 145 psi(g)/10bar(g) optional:Max.435psi(g)/30bar(g) |
Pressure Differential (Inlet to Outlet) | Under 500slm:72.5psi(d)/5bar(d); Above 500slm:145psi(d)/10bar(d) |
Mounting Attitude Sensitivity | Full Scale:None |
Valve Type | Normally Closed |
Ingress Protection | IP40 |
Wetted Materials | 316L 417J1 Stainless Steel, Viton, Heat Cured Silicone Rubber, Glass Reinforced Polyphenylene Sulfide, Heat Cured Epoxy, Aluminum, Gold, Brass, Silicon, Glass. If your application demands a different material, please contact . |
Communications / Power | GC-Series Mass Flow Controller | |
Monochrome LCD or color TFT display Integrated multifunction button | Display Mass Flow, Cumulative Flow, conversion gas coefficient and other functions | |
Digital Communications Options1 | RS-232 Serial / RS-485 Serial / Modbus RTU / PROFIBUS / EtherNet/IP / DeviceNet / Modbus TCP/IP / EtherCAT / PROFIBUS-DP | |
Analog Signal2 Options | 0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA | |
Optional Secondary Output Signal2 | 0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA | |
Electrical Connection Options | 9-pin D-sub (DB9) / 15-pin D-sub (DB15) / RJ11 | |
Supply Voltage | 24 Vdc / ±15Vdc | |
Supply Current | under 500slm : 0.50 Amp; above | 500slm：1 .0Amp |
1. The Digital Output Signal communicates Mass Flow, Cumulative Flow. 2. The Analog Output Signal and Optional Secondary Analog Output Signal communicate your choice of Mass Flow, Cumulative Flow. | ||
Features | GC-Series Mass Flow Controller |
Gas conversion coefficient V2.0 | Gas conversion coefficient provides 60 Preloaded Gas Calibrations: See the following page for a complete list. If your application calls for a gas not on this list, please let us know. We can also calibrate to a wide variety of complex gas mixtures. |
Range Specific Specifications
Full Scale Flow Mass Controller 1 | Mechanical Dimensions 2 | Process Connections3 |
GC-series 0.5-10 sccm |
GC-Standard series and Digital series 4.72”H x 3.15”W x 1.22”D
GC-Intelligent series 4.92”H x 3.94”W x 1.14”D |
G1/4” Female Thread
G3/8” Female Thread |
GC-series 10-100 sccm | ||
GC-series 100-500 scmm | ||
GC-series 500-1000 sccm | ||
GC-series 1000-2000 sccm | ||
GC-series 2-5 slm | ||
GC-series 5-20 slm | ||
GC-series 20-30 slm | ||
GC-series 30-100 slm |
5.31”H x 4.53”W x 1.38”D |
G3/8” Female Thread |
GC-series 100-200 slm | ||
GC-series 200-300 slm | ||
GC-series 300-500 slm |
6.30”H x 9.25”W x 2.91”D |
G1/2” Female Thread |
GC-series 500-1000 slm | ||
GC-series 1000-2000 slm | ||
GC-series 2000-3000 slm | ||
GC-series 3000-6000 slm | 6.30”H x 9.25”W x 2.91”Dx2 | Double G1/2”Female Thread |
1. Lower Pressure Drops Available mass flow controllers please contact . 2. See drawings for metric equvalents. 3. Compatible with tube, face seal, push connect and compression adapter fittings. VCR and SAE connections upon request. | ||
GC- Standard series and Digital series
0.5sccm-30slm
GC- Intelligent series
0.5sccm- 30slm
GC- Standard series and Digital series
30slm-300slm
GC-Intelligent series
30slm-300slm
GC- Digital series 300slm-3000slm
GC- Intelligent series
300slm-3000slm
Appendix: Gas conversion coefficient V2.0
*For more single gas coefficients or mixed gas coefficients, please provide the specific heat and density of the gas medium and contact for calculation.
