V cone flow meter principle:
V cone flow meter is a patented technology that accurately measures flow over a wide range of Reynolds numbers, under all kinds of conditions and for a variety of fluids.The V-Cone flow meter is a differential pressure type flow meter.The principal theory among these is Bernoulli’s theorem for the conservation of energy in a closed pipe. This states that for a constant flow, the pressure in a pipe is inversely proportional to the square of the velocity in the pipe.The V-Cone meter features a centrally located cone inside a tube. The cone reshapes the velocity profile and creates a low-pressure area immediately downstream of itself,provides accurate, repeatable, and cost-optimized flow measurement solutions.The difference between the static line pressure and the low-pressure area is measured by two pressure sensors and used to determine the flow rate.
A v cone meter is a device that measures how much liquid or gas moves through a pipeline in a given period of time. Cone meter is ideal for upstream, midstream, and downstream applications that present a wide range of measurement challenges.By measuring flow rates, flow meters provide crucial visibility into what's flowing where, within pipes, drainage systems, and other types of infrastructure.Due to a V-Cone meter creates a smoother flow and operates at a lower differential pressure than other DP meters, it experiences low permanent pressure loss and reduces energy costs for pumping.
Advantages of V Cone Flow Meter :
Shorter installation lengths
Less pressure loss than orifice plates
Lower sensitivity than orifice plates and Venturi tubes to installation effects
Wafer versions
Effective for wet gas flow measurement applications

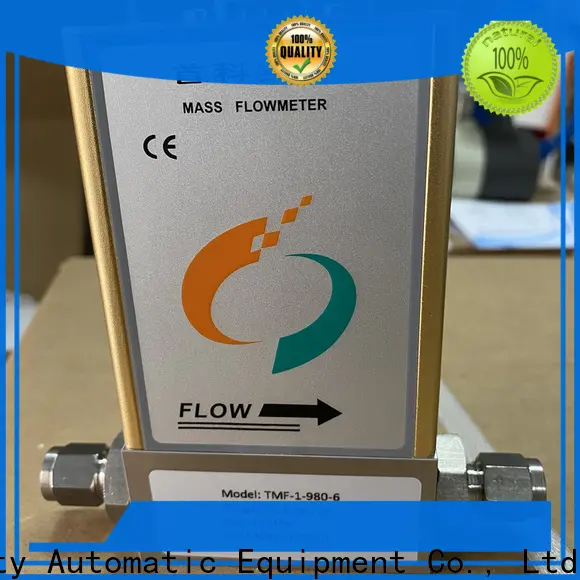

Technical Data for Sincerity TMF- Series Mass Flow Meters
0.5sccm – 6000 slm Full Scale
Standard Specifications (Contact Beijing Sincerity for available options.)
Performance | TMF -Series Mass Flow Meter |
Accuracy at calibration conditions after tare | ± 1% of Full Scale |
High Accuracy at calibration conditions after tare | ±0.5% of Full Scale High Accuracy option not available for units ranged under 5 sccm or over 3000 slm |
Repeatability | ± 0.2% Full Scale |
Zero Shift and Span Shift | 0.2% Full Scale / ºCelsius / Atm |
Operating Range / Turndown Ratio | 1% to 100% Full Scale /100:1 (200:1 optional) |
Maximum Measurable Flow Rate | 100% Full Scale |
Typical Response Time | <500 ms |
Leakage Rate | 1×10-9 atm ·cc/s He |
Operating Conditions | TMF -Series Mass Flow Meter |
Mass Reference Conditions (STP) | 25ºC & 14.696 psia (standard — others available on request) |
Operating Temperature | 0 to +50 ºCelsius |
Humidity Range (Non–Condensing) | 0 to 90% |
Maximum Internal Pressure (Static) | 145 psi(g)/10bar(g) optional: Max.1450psi(g)/100bar(g) |
Pressure Differential (Inlet to Outlet) | 145 psi(d)/10bar(d) |
Proof Pressure | 1450psi(g)/100bar(g) |
Mounting Attitude Sensitivity | None |
Ingress Protection | IP40 |
Wetted Materials |
316L 417J1 Stainless Steel, Viton, Heat Cured Silicone Rubber, Glass Reinforced Polyphen ylene Sulfide, Heat Cured Epoxy, Aluminum, Gold, Steel, Silicon, Glass. If your application demands a different material, please contact Grylls. |
Communications / Power | TMF -Series Mass Flow Meter | |
Monochrome LCD or color TFT display Integrated multifunction button | Display Mass Flow, Cumulative Flow, conversion gas coefficient and other functions | |
Digital Communications Options1 | RS-232 Serial / RS-485 Serial / Modbus RTU / PROFIBUS / EtherNet/IP / DeviceNet / Modbus TCP/IP / EtherCAT / PROFIBUS-DP | |
Analog Signal2 Options | 0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA | |
Optional Secondary Output Signal2 | 0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA | |
Electrical Connection Options | 9-pin D-sub (DB9) / 15-pin D-sub (DB15) / RJ11 | |
Supply Voltage | 24 Vdc / ±15Vdc | |
Supply Current | under 500slm : 0.50 Amp ; above | 500slm：1 .0Amp |
1. The Digital Output Signal communicates Mass Flow, Cumulative Flow. 2. The Analog Output Signal and Optional Secondary Analog Output Signal communicate your choice of Mass Flow, Cumulative Flow. | ||
Features | TMF -Series Mass Flow Meter |
Gas conversion coefficient V2.0 | Gas conversion coefficient provides 60 Preloaded Gas Calibrations: See the following page for a complete list. If your application calls for a gas not on this list, please let us know. We can also calibrate to a wide variety of complex gas mixtures. |
Range Specific Specifications
Full Scale Flow Mass Meter 1 | Mechanical Dimensions 2 | Process Connections3 |
TMF-series 0.5-10 sccm | ||
TMF-series 10-100 sccm | TMF- Standard series and Digital series 4.72”H x 3.15”W x 1.22”D |
G1/4” Female Thread |
TMF-series 100-500 scmm | ||
TMF-series 500-1000 sccm | ||
TMF-series 1000-2000 sccm | GM-Intelligent series | |
TMF-series 2-5 slm | ||
4.92”H x 2.76”W x 1.14”D | G3/8” Female Thread | |
TMF-series 5-20 slm | ||
TMF-series 20-30 slm | ||
TMF-series 30-100 slm |
5.12”H x 3.74”W x 1.38”D |
G3/8” Female Thread |
TMF-series 100-200 slm | ||
TMF-series 200-300 slm | ||
TMF-series 300-500 slm |
6.30”H x 6.89”W x 2.91”D |
G1/2” Female Thread |
TMF-series 500-1000 slm | ||
TMF-series 1000-2000 slm | ||
TMF-series 2000-3000 slm | ||
TMF-series 3000-6000 slm | 6.30”H x 6.89”W x 2.91”Dx2 | Double G1/2” Female Thread |
1. Lower Pressure Drops Available mass flow meters please contact Sincerity. 2. See drawings for metric equvalents. 3. Compatible with tube, face seal, push connect and compression adapter fittings. VCR and SAE connections upon request. | ||
TMF-Standard series and Digital series cone flow meter
0.5sccm-30slm
TMF-Intelligent series
0.5sccm-30slm
TMF-Standard series and Digital series 30slm-300slm
TMF-Intelligent series 30slm-300slm
TMF-Digital series
300slm-3000slm
TMF-Intelligent series v cone flow meter
300slm-3000slm
Appendix: Sincerity Gas conversion coefficient V2.0
*For more single gas vcone coefficients or mixed gas coefficients, please provide the specific heat and density of the gas medium and contact Beijing Sincerity for calculation.
Company Features
1. The quality of Sincerity Group is ensured. Its compliance is checked based on US, EU, and dozens of other specific standards including ISO, EN 581, EN1728, EN-1335, and EN 71.
2. The vcone flow element product can mold better to the shape of the foot and bend with the shoe when people step on uneven surfaces, so as to offer the best cushion effect.
3. The vcone flow element product quality is fine, has passed the international authentication.
4. The performance of the cone flow meter product has been greatly optimized by our dedicated technical team.
5. Our company has garnered a huge client base across the world. Without compromising the quality of the product variety, increasing market share, reasonable price, high quality and superior service with an understanding of our customers help us to retain these clients.
6. v cone flow meter principle embodies the culture of Sincerity. Call now!
